Looking for Used Axle Shaft?

Evolve Auto Parts can help you find Used Axle Shaft fast and easy. All Used Axle Shaft are inspected before being sold. We visually inspect for any cracks, leaks, damage, or issues before we put the parts in our inventory system. Our inventory of Used Axle Shaft is updated daily to insure fresh and up to date informaton for our customers.

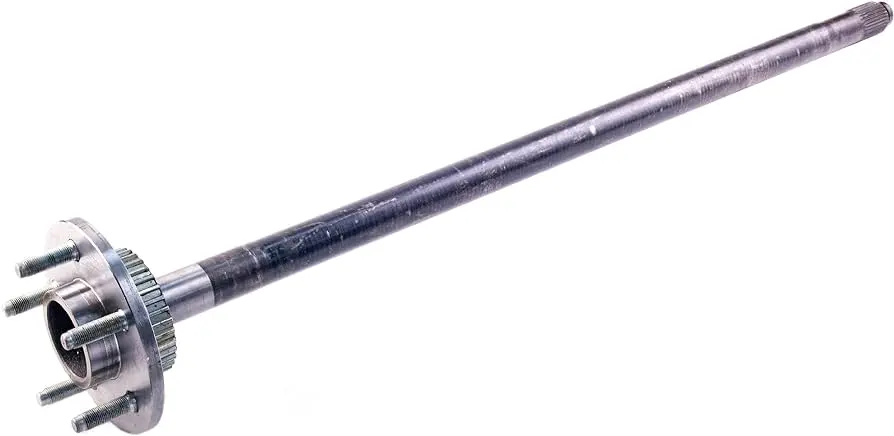

Axle shafts are heavy-duty, load-bearing components used in motorised vehicles. Also called CV axles or half-shafts, these components transfer rotational force from the vehicle’s transmission system to the wheels attached to the axles. Axle shafts must support heavy loads by design, including cargo, riders, and the vehicle’s own mass. While they are built to handle heavy weights, it is possible to overload the component and force it to warp or break from the strain. Similarly, physical impact from collisions, potholes, and rough roads may cause damage.

Types of Axle Shafts

The type of axle shaft varies depending on the requirements of the vehicle type, and each axle shaft handles different types of stress. This factor depends on the length of the axle shaft relative to the position of the vehicle’s hubs and bearings, as well as how the vehicles are designed to attach to the axle shafts.

These are three most common axle shaft types:
• 1.Semi-Floating Axle Shafts - This design has flange faces on both outer ends of the axle shaft. These faces attach directly onto the associated wheels.
• 2.Fully Floating Axle Shafts - Instead of having flange faces that directly connect the axle shaft to the wheels, this style of axle shaft has hubs between the two components. Each wheel connects to a hub, and that hub rotates on roller bearings attached to a spindle at both ends of the axle shaft. The roller bearings are tapered and face opposing directions, and the hubs and bearings handle the vehicle weight to take strain off the axle bearing. Without the need to support the weight of the vehicle and its cargo, the axle bearing “floats,” instead only having to withstand the transmission system’s torque.
• 3.Quarter Floating Axle Shafts - These axle shafts feature elements from both semi-floating and full floating axle shaft designs. Three-quarter floating axle shafts have bearings positioned between the axle casing and hub axle shaft. However, the bearings remain protected from shearing or bending forces.
